Stress Analysis: Thermal Simulation in Concrete Technology

A powerful software tool that, when combined with in-depth knowledge of concrete technology, is essential for optimizing material composition and preventing cracks in concrete, thereby enhancing concrete durability

Thermal Simulation and Concrete Technology: An Unbeatable Combination for Optimal Results

At Concrefy, we combine our deep expertise in concrete technology with advanced stress simulation software to offer customized guidance. We know that preventing cracks is essential for ensuring the structural integrity and long-term durability of concrete structures.

With pracical experience over years we are familiar with effective crack control starting early in the construction process, with careful planning and analysis. That’s why we offer comprehensive stress analysis and differtent thermal simulation services, such as 3D simulation , providing expert advice and guidance from the design phase through to execution, so you can be confident in the resilience of your project.

What is Thermal Simulation in Concrete Technology?

3D simulation is a computer-based method for representing and analyzing physical processes and structures, crucial in construction and engineering for precise thermal modeling in concrete. It is a specialized form of thermal simulation that takes into account the unique properties and behavior of concrete during production, installation, and use phases.
The concrete technological thermal simulation refers to the modeling and analysis of heat generation and thermal behavior of concrete throughout its lifecycle, particularly in connection with the curing process and temperature control. Predicting Structural Changes Before Execution: Anticipating potential alterations in a structure before construction helps to avoid unexpected issues during the building process. Monitoring Deflections, Temperature Changes, and Cracking: Simulations can predict deflections under loads, temperature variations, heat development, and potential cracking or failure in concrete, allowing for preemptive adjustments. Enhancing Design and Preventing Future Problems: By identifying these risks early, simulations aid in refining the design and implementing preventive measures, ensuring long-term durability and reliability of the structure.

Why are simulations necessary?

Especially for all constructions qualified as mass concrete, a maximum crack width is often specified. This cannot be achieved with the conventional construction method
  • Utilizing Simulations During the Design Stage: Simulations should be employed early in the design process to identify potential issues, allowing for rectifications and the achievement of optimal solutions before construction begins.
  • Prevent Disastrous Consequences in Mass Concrete: Address temperature changes, shrinkage, and load-induced stresses to avoid significant issues during and after construction.
Core Benefits
  • Enhance Safety: Improve structural integrity by predicting and minimizing temperature-induced cracking, enhancing durability, and preventing catastrophic premature failures.
  • Reduce Costs: Avoid costly repairs of cracks and reduce downtime by proactively addressing thermal stress during the construction phase.
  • Increase Sustainability: Extend the structure’s service life by reducing degradation, and lower carbon emissions through optimized material use and decreased maintenance needs.

What are the areas of application?

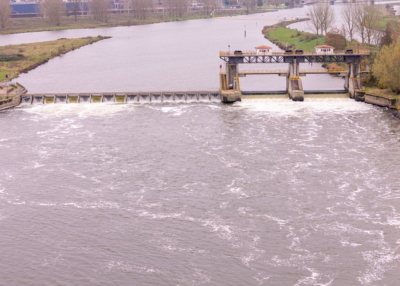

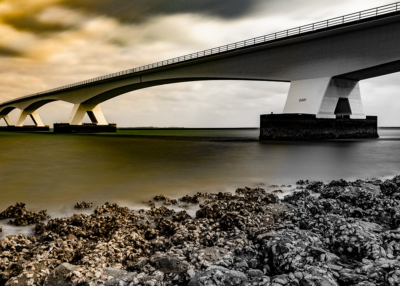

Our extensive portfolio covers a wide range of projects, including bridges, tunnels, viaducts, power stations, dams, high-rise buildings, and stadiums.

Overall, 3D thermal simulation serves as a powerful tool for ensuring quality, safety, and performance in large-scale and high-risk construction projects, enhancing the durability and integrity of concrete structures in diverse sectors.

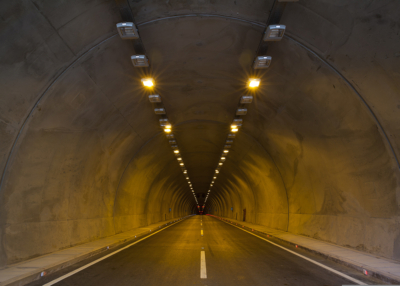

  • Large Infrastructure Projects (Locks, Bridges, Tunnels, etc.):
    For major infrastructure works, 3D thermal simulation is essential in predicting and managing the temperature distribution during the curing process. This ensures structural integrity by mitigating risks like thermal cracking, enhancing durability, and improving the overall lifespan of complex structures such as locks, bridges, and tunnels.
  • Construction Companies in the Petrochemical Sector (Large Foundations, Thick Slabs):
    In the petrochemical industry, construction often involves large-scale concrete elements, such as massive foundations and thick slabs. Thermal simulations help optimize curing strategies and temperature control measures, ensuring the structural safety and longevity of these critical components while minimizing potential issues arising from temperature gradients.
  • Construction Companies Working in the Nuclear Sector:
    In the nuclear industry, the demands for precision, safety, and durability are particularly high. 3D thermal simulations provide invaluable insights into the thermal behavior of concrete structures used in nuclear facilities. By accurately predicting and controlling thermal effects, this technology supports compliance with stringent safety standards and ensures optimal performance and stability.

Maximizing Savings with Thermal Simulation Combined with Practical Concrete Technology

(Based on anonymized project examples for confidentiality)

During the execution phase of the following cases, simulations simulations played a crucial role for our concrete technologists, primarily aiding in identifying potential issues, optimizing material usage, and reducing costs.

Case 1

In analyzing the results, the expertise of our concrete technologists proved to be indispensable. Concrefy’s concrete technologists analyzed the data, developed tailored mixture recommendations, and designed detailed execution strategies. They supported the hardening process directly on-site with our mobile lab, enabling real-time testing and immediate interventions.

By optimizing the thermal management in a project through simulations and advice of Concrefy’s specialists, a client was able to reduce material use by 15% and cut costs by €30,000. This process not only reduced waste but also enhanced structural integrity by preventing excessive cracking.

15%

Reduce material

30.000

cut costs

Case 2

In a typical large-scale construction project, utilizing thermal simulation helped reduce the amount of concrete and reinforcement needed by optimizing the pour process. By improving the temperature control and minimizing cracking risk, we saved approximately 10% of materials, which translated into an estimated cost reduction of €50,000.

This optimization not only reduced material use but also decreased the overall project timeline, leading to further cost savings. This optimization not only reduced material use but also decreased the overall project timeline, leading to further cost savings.

10%

Reduce material

50.000

cut costs

Explore how we bring precision and reliability to your projects with our advanced analysis services using simulation technology.

At Concrefy, we integrate advanced 3D simulation technology into both the planning and execution phases of concrete construction to enhance project outcomes. By combining advanced simulations with real-time monitoring and expert guidance on-site, we ensure that concrete structures meet stringent quality standards, resulting in enhanced performance and longevity.

At Concrefy, we combine our deep expertise in concrete technology with advanced stress simulation software to offer customized guidance for managing cracks caused by hydration heat in young concrete. Young concrete behaves differently during the hardening process compared to fully hardened concrete, increasing the complexity of structural models.

  • The exothermic reaction in young concrete leads to heat development.
  • The heat distribution in concrete varies based on environmental factors.
  • Variation in heat distribution causes uneven expansion and strain in the concrete.
  • Structural boundary conditions add additional restraint, leading to imposed stresses. The mechanical properties of concrete that provide resistance to these stresses develop gradually over time.
  • The imposed stresses can exceed the mechanical tensile strength, leading to the formation of cracks.
Simulations provide the opportunity to assess multiple scenarios before the start of work and map out their effects on concrete, reinforcement, cooling or insulating the concrete, pouring schedule, reinforcement configuration, and the risk of stress/cracking. Utilizing state-of-the-art software like DIANA FEA, we create detailed virtual models to predict temperature changes, shrinkage, and load-induced stresses in mass concrete structures. This approach allows us to assess multiple scenarios, optimizing concrete mixtures, reinforcement configurations, cooling or insulating strategies, and pouring schedules to effectively control cracking due to hydration heat.
  • Real-Time Monitoring with Concremote: During construction, we employ Concremote sensors to monitor actual conditions in real-time. This data enables immediate adjustments to maintain optimal curing conditions, ensuring the concrete achieves the desired strength and durability.
  • On-Site Expertise: Our concrete technologists provide customized mixture recommendations and detailed execution strategies. With our mobile lab, we guide the hardening process on-site, conducting immediate testing and interventions as necessary.

The cutting-edge 3D simulation technology

How does it work

Steps: Temperature changes in massive concrete – Shrinkage – Load-induced

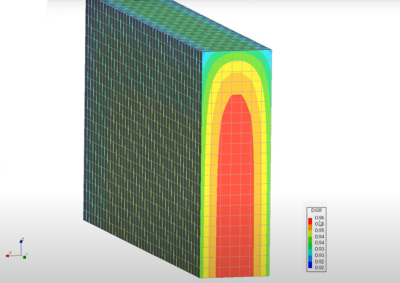

The Simulations are based on the Finite Element Approach, is faster and more efficient than traditional designing solutions. At Concrefy we use the State-of-the-Art software: DIANA FEA.

It refers to the most advanced and innovative methods for creating three-dimensional virtual models and simulations. This empowers us to deliver tailored expertise on optimal mixtures and execution strategies.

By using this simulation method, we can effectively control cracking due to hydration heat. Especially in structures classified as mass concrete, a maximum crack width is often prescribed.

Without simulation software, it is not possible to realise this prespecification in the traditional way.

In essence, integrating stress simulation with Concrefy’s concrete technologists unlocks additional value

  • Heat Development Control: Simulations visualize temperature changes in young concrete, enabling effective management of heat generation.
  • Mechanical Property Development: Monitoring and predicting the evolution of concrete’s mechanical properties ensure structural integrity.
  • Cooling and Insulation Strategies: Tailored plans mitigate temperature-induced stresses, reducing cracking risks.
  • Optimized Mix Designs: Expert recommendations for concrete mixtures enhance performance and durability.
  • Crack Prevention: Simulations identify potential cracking, allowing for proactive measures.
  • Reinforcement Placement: Strategic reinforcement positioning strengthens critical areas.
  • Construction Process Optimization: On-site mobile laboratory support ensures adherence to optimal construction schedules and processes.

Schedule a consultation with our specialist for a customized solution

Experience seamless coordination from conception to execution oversight with Concrefy as your sole point of contact for a comprehensive solution.
Discover how we bring precision and reliability to your projects with our advanced analysis services by using the cutting-edge 3D simulation technology

Contact us today
